Artikelnummer: 43003242
Manufacturer nr: 20003014

Fiber optic power with fast Wi-Fi 6

Maximum speed for all fiber optic connections – the FRITZ!Box 5590 Fiber delivers. Wi-Fi 6 provides your smartphones, notebooks and other devices with super-fast internet. With the powerful hardware, you experience hassle-free streaming, fastest downloads, the FRITZ! convenience of a complete telephone system, and reliable security features for your home network. You can also benefit from practical Smart Home features and the free FRITZ!Apps.

login for price!

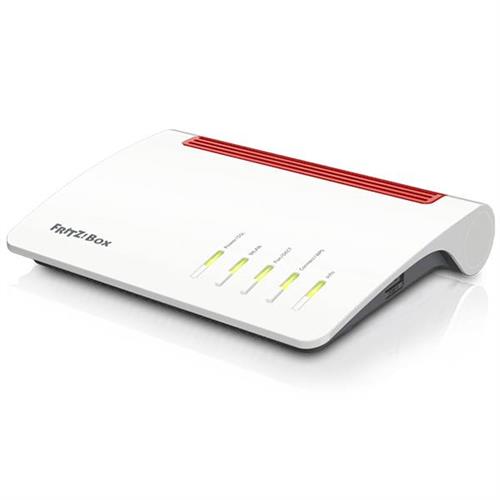

AVM FRITZ!Box 5590 GPON at a glance


  • Wireless router with an SFP port for a FRITZ!SFP fiber optic module (comes with GPON)
  • 1 x 2.5 gigabit WAN port, can also be used as a 2.5 gigabit LAN port (IEEE 802.3bz standard, NBASE-T)
  • 4 x gigabit LAN ports
  • Wi-Fi 6 (5 GHz, 2.4 GHz)
  • Integrated DECT base station for up to six cordless phones
  • 2 x a/b ports (TAE/RJ11) for analog phones, answering machines and fax
  • 2 x USB 3.0 ports for printers and storage devices in the network


  • Fiber optics router with firewall/NAT, DHCP server, DynDNS client, UPnP AV
  • Suitable for gigabit-capable passive optical networks (GPON)
  • Router can also be used over an existing internet connection via LAN or with media converter on the SFP module
  • Supports IPv6
  • Stateful Packet Inspection Firewall with port sharing for secure web surfing
  • Secure remote access via the internet with VPN (IPSec)
  • Use of existing internet connections via LAN

Fiber optics


  • Suitable for ITU-T G.984.2/984.5 (GPON)
  • LC/APC 8°
  • Wavelength: TX 1310 nm, RX 1490 nm (with filter)
  • Suitable for rogue detection
  • Transmitter power: 0.5 to 5 dBm
  • Reception range: -3 to -28 dBm
  • Range: 20 km
  • Support for SFF-8472
  • Class 1 laser


  • 4 x 4 Wi-Fi 6 with Multi-User MIMO
  • Wi-Fi 6 for simultaneous operation in the 2.4 and 5 GHz bands
  • Data rates of up to 2,400 Mbit/s (5 GHz) and 1,200 Mbit/s (2.4 GHz)
  • Compatible with Wireless 802.11ac (Wi-Fi 5), n (Wi-Fi 4), g and a
  • Extends your home network with Mesh Wi-Fi Find out more https://en.avm.de/mesh/
  • Secure upon delivery with WPA2 encryption, WPA3/2 transition mode is also available
  • Wi-Fi Protected Setup (WPS)
  • Wi-Fi guest access – secure surfing for friends and visitors
  • Wi-Fi auto channel: Automated search for Wi-Fi channel free of interference
  • Wi-Fi Eco for optimum performance at minimum power consumption
  • Wi-Fi can be turned on/off using “WLAN” button


  • Telephone system with DECT base station for up to six cordless telephones
  • Voice transmission encrypted upon delivery
  • Port for an analog phone, answering machine or fax
  • Supports HD telephony for natural and clear sound
  • ECO DECT: The DECT transmitting power is switched off for all registered phones when in standby mode
  • Five integrated answering machines including email forwarding (voice-to-mail)
  • Fax function including email forwarding (fax-to-mail)
  • Call diversion, internal calls (intercom), three-way conferencing, call transfer
  • Call blocking, alarm, baby monitor, VIP calls and Do not Disturb
  • Internet telephony SIP-compliant in accordance with RFC 3261
  • Register IP telephones (LAN/Wi-Fi) SIP-compliant
  • FRITZ!App Fon for landline calls via your smartphone

Home network convenience

  • Media server makes music, pictures and videos available to devices in the home network (DLNA, UPnP AV)
  • MyFRITZ! – access your own FRITZ!Box safely, no matter where you are
  • FRITZ!NAS: memory shared by all data in the home network
  • Powerful processor: networked applications such as IPTV, video on demand and music streaming
  • Parental controls, push service, cloud contacts, online storage
  • Share existing internet connection over LAN
  • Wake on LAN via the internet


  • “fritz.box”: multi-language user interface, for intuitive operation via Web browser
  • User interface optimized for smartphones and tablets (responsive design)
  • Free updates for new functions and security
  • Advanced view for special configuration options, help function with full-text search
  • Handy FRITZ!Apps for your smartphone: MyFRITZ!App for FRITZ! convenience on the go, the clever Wi-Fi helper FRITZ!App WLAN and FRITZ!App Smart Home for intuitive control of your FRITZ! Smart Home
  • Smart Home features integrated in the user interface
  • Smart Home support for DECT ULE/HAN FUN devices
  • Smart Home devices can be switched manually and automatically both in the home network and from the Internet

Package contents

  • FRITZ!Box 5590 Fiber
  • Power supply unit
  • 1.5 meter-long LAN cable
  • Quick guide

Device properties

  • Dimensions (W x H x D): 254 x 63 x 191 mm


  • 5-year manufacturer’s warranty for end customers

Article number

  • 20003014
