AVM FRITZ!Box 7690
AVM FRITZ!Box 7690 - Image 2
AVM FRITZ!Box 7690 - Image 3

AVM FRITZ!Box 7690

Artikelnummer: 43003248

Login to view prices

Description

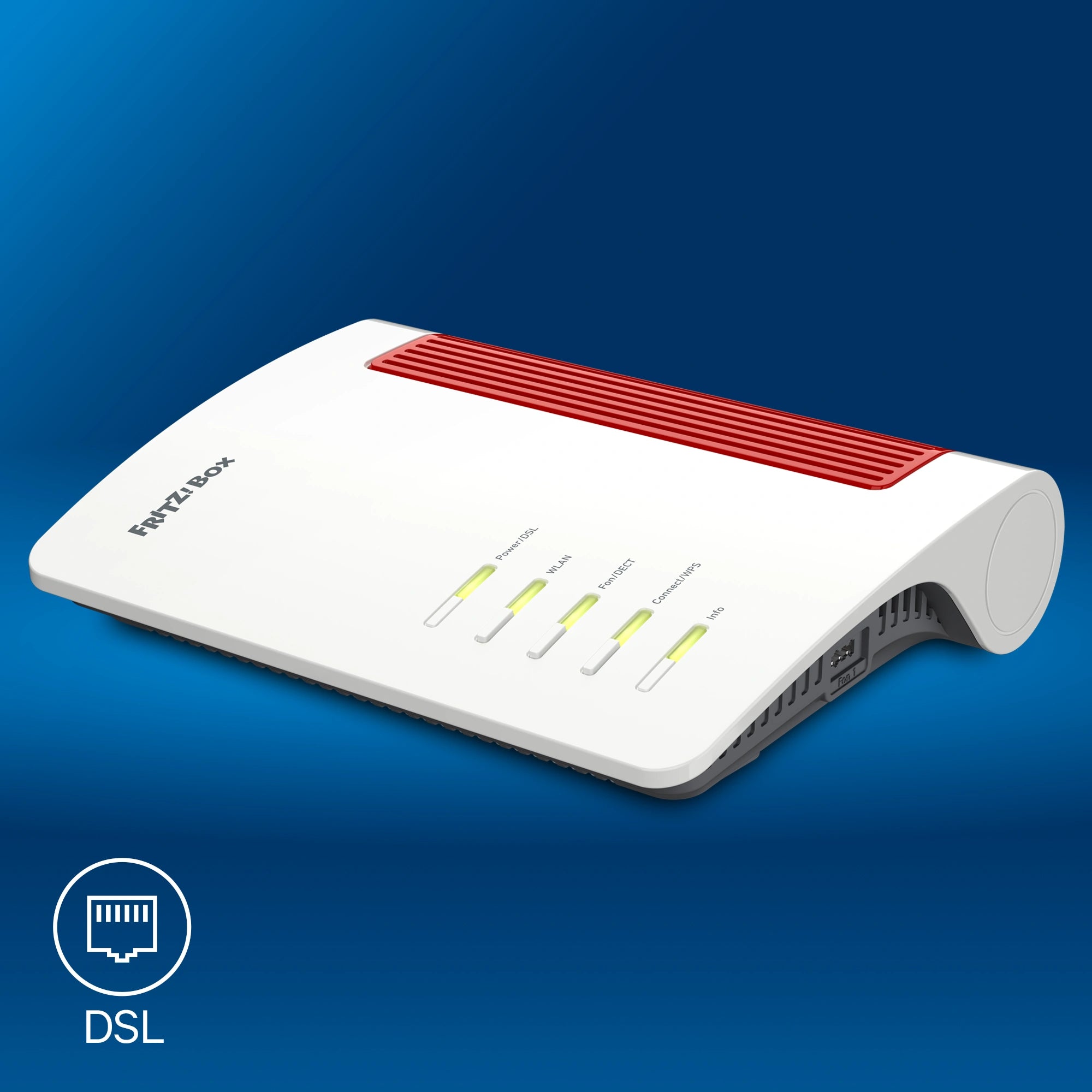

AVM FRITZ!Box 7690

The AVM FRITZ!Box 7690 is AVM’s flagship DSL router delivering Wi-Fi 7 with combined wireless speeds of up to 7.1 Gbit/s across three bands. Integrated Zigbee smart home control, 2.5 Gigabit LAN ports, and full FRITZ!OS make it the ultimate all-in-one home and office gateway.

Specifications

WiFi Wi-Fi 7 (802.11be), tri-band, up to 7.1 Gbit/s
DSL VDSL2 supervectoring up to 300 Mbit/s, ADSL2+
LAN 2× 2.5 GbE + 2× GbE
USB 1× USB 3.0
Telephony 2× analogue (RJ11), DECT (up to 6 handsets)
Smart Home Zigbee integrated
VPN WireGuard + IPsec
Warranty 5 years
WAN connection
Ethernet WAN
DSL WAN
3G/4G USB modem compatibility
WAN connection type RJ-45
Wireless LAN features
Wi-Fi band Dual-band (2.4 GHz / 5 GHz)
Top Wi-Fi standard Wi-Fi 7 (802.11be)
WLAN data transfer rate (max) 5760 Mbit/s
Wi-Fi standards 802.11a, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 7 (802.11be)
Network
Ethernet LAN
Ethernet LAN interface type 2.5 Gigabit Ethernet
Ethernet LAN data rates 10, 100, 1000 Mbit/s
Cabling technology 10/100/1000Base-T(X)
Networking standards IEEE 802.3bz
Automatic channel selection
Dynamic DNS (DDNS)
DSL features
ADSL2+
VDSL
Ports & interfaces
Ethernet LAN (RJ-45) ports 3
USB port
USB 2.0 ports quantity 1
RJ-11 ports quantity 2
DC-in jack
Management features
WPS push button
Wake-on-LAN ready
Intelligent Mesh technology
Security
Security algorithms WPA2, WPA3
Network address translation (NAT)
Protocols
DHCP server
Design
Product colour White
Indication light
Product type Tabletop router
Packaging content
Cables included DSL, LAN (RJ-45)
AC adapter included
Quick start guide
Antenna
Antenna design Internal
Antenna type 4x4
Power
Power source type AC
Power consumption (typical) 13 W
Weight & dimensions
Width 250 mm
Depth 184 mm
Height 48 mm
Weight 657 g
Packaging data
Package width 305.5 mm
Package depth 69 mm
Package height 240 mm
Package weight 1.06 kg
Package type Box
